VeinViewer:superior light based technology
VeinViewer® Flex is a highly portable vascular access imaging device that can help you find the optimal venipuncture site and avoid potential complications.
With HD imaging and Df² technology, this small VeinViewer model is the brightest and only handheld vein illuminator that provides benefits for all patients during the entire Pre-, During- and Post- vascular access procedure. It is ideal for alternate care facilities, such as surgery and blood/plasma centers, as well as home healthcare and Emergency Medical Services (EMS), VeinViewer Flex is designed for durability and maximum portability. Flex is also suited for hospital departments such as the Emergency Department and NICU where space requirements and speed of assessment demand an ultra-portable and reliable vein finder.
VeinViewer® Flex is a highly portable vascular access imaging device that can help you find the optimal venipuncture site and avoid potential complications.
With HD imaging and Df² technology, this small VeinViewer model is the brightest and only handheld vein illuminator that provides benefits for all patients during the entire Pre-, During- and Post- vascular access procedure. It is ideal for alternate care facilities, such as surgery and blood/plasma centers, as well as home healthcare and Emergency Medical Services (EMS), VeinViewer Flex is designed for durability and maximum portability. Flex is also suited for hospital departments such as the Emergency Department and NICU where space requirements and speed of assessment demand an ultra-portable and reliable vein finder.
How Does It Work?
With HD imaging and exclusive Df2 (digital full field) technology, VeinViewer is the only vein illuminator that provides benefits for all patients during the entire Pre, During and Post vascular access procedure.

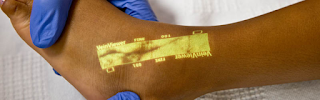

Projected near-infrared light is absorbed by blood and reflected by surrounding tissue. The information is captured, processed and projected digitally in real time directly onto the surface of the skin. It provides a real time accurate image of the patient's blood pattern.
VeinViewer patented technology, using AVIN™ (Active Vascular Imaging Navigation), allows you to see blood patterns up to 15mm deep and clinically relevant veins up to 10mm. With VeinViewer clinicians can see peripheral veins, bifurcations and valves and assess in real time the refill/flushing of veins. With visualization Pre-, During- and Post-procedure, clinicians can potentially avoid complications from accidental puncture. Improving the total vascular access procedure, not just the stick.
With HD imaging and exclusive Df2 (digital full field) technology, VeinViewer is the only vein illuminator that provides benefits for all patients during the entire Pre, During and Post vascular access procedure.
Projected near-infrared light is absorbed by blood and reflected by surrounding tissue. The information is captured, processed and projected digitally in real time directly onto the surface of the skin. It provides a real time accurate image of the patient's blood pattern.
VeinViewer patented technology, using AVIN™ (Active Vascular Imaging Navigation), allows you to see blood patterns up to 15mm deep and clinically relevant veins up to 10mm. With VeinViewer clinicians can see peripheral veins, bifurcations and valves and assess in real time the refill/flushing of veins. With visualization Pre-, During- and Post-procedure, clinicians can potentially avoid complications from accidental puncture. Improving the total vascular access procedure, not just the stick.
VeinViewer does more than just locate veins.
Locating veins is only the first step to a successful venipuncture procedure. With HD imaging and Df2 (Digital Full Field) technology, VeinViewer® is the only vein finder that can help you improve the total patient experience by reducing the number of sticks, potentially improving intravenous catheter dwell times and avoiding associated complications. Use our ROI calculator to figure out the potential cost savings associated with VeinViewer technology.
VeinViewer has been proven to:
- Increase first stick success by up to 100%
- Decrease medically unnecessary PICC lines by greater than 30%
- Increase patient satisfaction by 100%
VeinViewer delivers valuable information for the entire vascular access procedure and should be used to help assess the patient Pre-, During- and Post-access. Everyone from the novice to the experienced clinician can benefit from VeinViewer.
Pre-access: The most obvious vein is not always the best option for access. VeinViewer provides clinicians with assessment information to make a more informed decision.
- Locate veins that are clinically relevant to a peripheral procedure, up to 10mm deep for PIV and up to 15mm for blood pattern assessment.
- Use the VeinViewer image with TrueView accuracy to make a more informed decision in catheter gauge selection.
- Determine the location of valves and bifurcations and avoid these problematic structures.
- Find the optimal access point and vessel target that is sufficient for the length of the catheter.
- Assess blood refill rate with real-time visual feedback prior to IV placement and during review of the site.
During-access: Unpredictable factors can make advancing the catheter a challenge and could require you to start the procedure over . Real-time Df² imaging, exclusive to VeinViewer, allows you to immediately react and adjust your technique to help ensure a successful outcome.
- Navigate curves in the vessel.
- Visualize a rolling vein.
- Confirm a patent IV by visualizing the flush of IV fluids to determine if the catheter is flowing properly.
Post-access: Assessing the patency of the vessel with VeinViewer after catheter placement can help avoid potential complications and improve the patient experience.
- Detect a hematoma from an accidental puncture as it forms and potentially avoid an infiltration.
- Confirming a successful peripheral IV placement may help avoid medically unnecessary central lines such as PICC or CVC.
Features
Locating veins is only the first step to a successful venipuncture procedure. With HD imaging and Df2 (Digital Full Field) technology, VeinViewer® is the only vein finder that can help you improve the total patient experience by reducing the number of sticks, potentially improving intravenous catheter dwell times and avoiding associated complications. Use our ROI calculator to figure out the potential cost savings associated with VeinViewer technology.
VeinViewer has been proven to:
- Increase first stick success by up to 100%
- Decrease medically unnecessary PICC lines by greater than 30%
- Increase patient satisfaction by 100%
VeinViewer delivers valuable information for the entire vascular access procedure and should be used to help assess the patient Pre-, During- and Post-access. Everyone from the novice to the experienced clinician can benefit from VeinViewer.
Pre-access: The most obvious vein is not always the best option for access. VeinViewer provides clinicians with assessment information to make a more informed decision.
- Locate veins that are clinically relevant to a peripheral procedure, up to 10mm deep for PIV and up to 15mm for blood pattern assessment.
- Use the VeinViewer image with TrueView accuracy to make a more informed decision in catheter gauge selection.
- Determine the location of valves and bifurcations and avoid these problematic structures.
- Find the optimal access point and vessel target that is sufficient for the length of the catheter.
- Assess blood refill rate with real-time visual feedback prior to IV placement and during review of the site.
During-access: Unpredictable factors can make advancing the catheter a challenge and could require you to start the procedure over . Real-time Df² imaging, exclusive to VeinViewer, allows you to immediately react and adjust your technique to help ensure a successful outcome.
- Navigate curves in the vessel.
- Visualize a rolling vein.
- Confirm a patent IV by visualizing the flush of IV fluids to determine if the catheter is flowing properly.
Post-access: Assessing the patency of the vessel with VeinViewer after catheter placement can help avoid potential complications and improve the patient experience.
- Detect a hematoma from an accidental puncture as it forms and potentially avoid an infiltration.
- Confirming a successful peripheral IV placement may help avoid medically unnecessary central lines such as PICC or CVC.
Features
ASSESS Imaging Suite
VeinViewer Flex comes standard with our Universal imaging mode and is customizable to the full ASSESS™ Imaging Suite through optional upgrades:
Universal A benefit for all your patients. The brightest and most accurate direct-projection, baseline mode available. Ideal for minimizing surface structures such as hair and wrinkles. Fine detail Enhances finer structures, ideal for identifying small veins in pediatric or sclerotherapy patients. Inverse Allows you to switch colors within the image window. This unique feature assists clinicians in customizing the projected image based on factors such as skin tone, density of hair follicles and room brightness. Resize Allows you to choose one of three window sizes, a valuable feature for pediatric patients or when you need to focus on only one vessel. Image Capture Allows the user to take and store up to 200 static images of patient vasculature on the device and transfer them to a PC for integration to HIS/RIS/PACS. No patient data is captured; HIPAA compliant. Excellent for documentation of vascular access site pre and post access, for setting expectations with aesthetics patients, and demonstrating outcomes. MaxBright Increases our market leading image brightness by another 40% for scenarios where greater than standard ambient lighting.
Specifications
Brightness Minimum of 5 lumens Weight 1.6 lbs. (0.7 kg) Dimensions 11.6" x 4" x 1.7" Power source Fast-swap lithium ion batteries or AC (outlet) Imaging/focal distance 12" (30 cm), meets with AST recommendations for safe distance from the sterile field.
- VeinViewer Flex uses no consumables, requires no patient contact and has no heat, laser eye-safety or radiation issues.
VeinViewer Flex comes standard with our Universal imaging mode and is customizable to the full ASSESS™ Imaging Suite through optional upgrades:
| Universal | A benefit for all your patients. The brightest and most accurate direct-projection, baseline mode available. Ideal for minimizing surface structures such as hair and wrinkles. |
| Fine detail | Enhances finer structures, ideal for identifying small veins in pediatric or sclerotherapy patients. |
| Inverse | Allows you to switch colors within the image window. This unique feature assists clinicians in customizing the projected image based on factors such as skin tone, density of hair follicles and room brightness. |
| Resize | Allows you to choose one of three window sizes, a valuable feature for pediatric patients or when you need to focus on only one vessel. |
| Image Capture | Allows the user to take and store up to 200 static images of patient vasculature on the device and transfer them to a PC for integration to HIS/RIS/PACS. No patient data is captured; HIPAA compliant. Excellent for documentation of vascular access site pre and post access, for setting expectations with aesthetics patients, and demonstrating outcomes. |
| MaxBright | Increases our market leading image brightness by another 40% for scenarios where greater than standard ambient lighting. |
Specifications
| Brightness | Minimum of 5 lumens |
| Weight | 1.6 lbs. (0.7 kg) |
| Dimensions | 11.6" x 4" x 1.7" |
| Power source | Fast-swap lithium ion batteries or AC (outlet) |
| Imaging/focal distance | 12" (30 cm), meets with AST recommendations for safe distance from the sterile field. |
- VeinViewer Flex uses no consumables, requires no patient contact and has no heat, laser eye-safety or radiation issues.
Key specifications for alternate care providers like EMS:
Accessories
VeinViewer Flex comes standard with (2) S-Mounts and (2) Clamps so clinicians can mount the device to existing fixtures—allowing for hands-free, Eyes On Patient™ technique. Mount your VeinViewer Flex to tables, counter tops, bed rails and IV poles. There is no need to purchase (or clean) separate equipment.
Every VeinViewer Flex unit operates via AC power or battery so there is no fear of a "down" device. Each Flex comes standard with (2) fast-swap, rechargeable Lithium Ion batteries for up to 4 hours of continuous run time (approximately 2 hours per battery).
Here is a complete list of the VeinViewer Flex base accessory kit & standard items:
Included in every VeinViewer Flex base accessory kit: (2) Fast-swap rechargeable Lithium Ion Batteries Up to 2 hours continuous run time per battery Battery Charger Can be powered via AC Power or car charger AC Power Adapter To be plugged into an outlet, or an ambulance cabin receptacle International Power Adapters For use in: North America, EU, UK, China, Australia (Brazil adapter available upon request) (2) S-Mounts (Stability Mount + C-Clamp and Super Clamp Systems) S-Mounts allow for hands-free, Eyes On Patient™ technique (2) Clamps Clamps allow clinicians to affix S-Mount to: flat surfaces (tables, countertops), or round/square surfaces (bed rails, IV poles) Storage case For convenient storage of Flex unit Wrist strap For ease-of-use VeinViewer Flex Connect PC Software To upgrade your device USB Cable For connection to VeinViewer Connect PC software VeinViewer In-Service Training Video Guide for using VeinViewer Flex
- Optional accessories for VeinViewer Flex include a travel case (to hold the device, batteries and battery charger) and a car charger.
Accessories
VeinViewer Flex comes standard with (2) S-Mounts and (2) Clamps so clinicians can mount the device to existing fixtures—allowing for hands-free, Eyes On Patient™ technique. Mount your VeinViewer Flex to tables, counter tops, bed rails and IV poles. There is no need to purchase (or clean) separate equipment.
Every VeinViewer Flex unit operates via AC power or battery so there is no fear of a "down" device. Each Flex comes standard with (2) fast-swap, rechargeable Lithium Ion batteries for up to 4 hours of continuous run time (approximately 2 hours per battery).
Here is a complete list of the VeinViewer Flex base accessory kit & standard items:
| Included in every VeinViewer Flex base accessory kit: | |
|---|---|
| (2) Fast-swap rechargeable Lithium Ion Batteries | Up to 2 hours continuous run time per battery |
| Battery Charger | Can be powered via AC Power or car charger |
| AC Power Adapter | To be plugged into an outlet, or an ambulance cabin receptacle |
| International Power Adapters | For use in: North America, EU, UK, China, Australia (Brazil adapter available upon request) |
| (2) S-Mounts (Stability Mount + C-Clamp and Super Clamp Systems) | S-Mounts allow for hands-free, Eyes On Patient™ technique |
| (2) Clamps | Clamps allow clinicians to affix S-Mount to: flat surfaces (tables, countertops), or round/square surfaces (bed rails, IV poles) |
| Storage case | For convenient storage of Flex unit |
| Wrist strap | For ease-of-use |
| VeinViewer Flex Connect PC Software | To upgrade your device |
| USB Cable | For connection to VeinViewer Connect PC software |
| VeinViewer In-Service Training Video | Guide for using VeinViewer Flex |
- Optional accessories for VeinViewer Flex include a travel case (to hold the device, batteries and battery charger) and a car charger.
